Discover strengths of plastic snap fasteners for Colorsnaps®
Press-button fasteners are made from plastics or metals of the two materials and can be periodically removed and replaced or reused when servicing of the part is necessary. It is a simple and versatile joining method. Traditionally used for metals, it can be used to join plastics to other plastics or plastics to metals.
In decades, a new revolution relates to metal snap fasteners and has particular reference to such fasteners made of plastics. One object of the plastic snap is to provide an improved spring operating fastener made wholly of plastic material, or at least without requiring any metal.
Nowadays, plastic fasteners are more lightweight, corrosion resistant, and impact resistant comparing with metals. They do not freeze on threads of screws and require no lubrication. The range of plastic items are broadly wide and comprehends snap fasteners, sewable buttons and buckles for garments and accessories. They are synonymous of quality and resistance, great for every use such as sport clothing, work wear and military application.

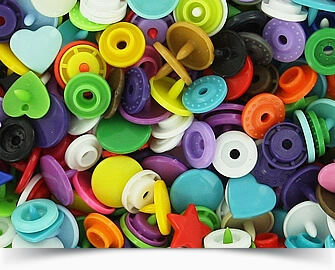

Our plastic snaps are offered in various colors with shine & matte surface finishes. They are offered in multiple sizes allowing customer to build clothing, diapering or fabric crafting project with matching styles on all components. See the following table lists the size range and basic application.
SIZE | MODEL | TOP CAP | FINISHES | COLORS | APPLICATIONS | |
Glossy | Matte | |||||
Tiny | CST/II | 8mm (13L ~ 5/16") | ✓ | ✓ | 8 | New Born, Infants & Doll clothes |
Small | CST/70 | 9mm (14L ~ 23/64") | ✓ | ✓ | 24 | |
CST/70 | 10mm (16L ~ 25/64") | ✓ | ✓ | 24 | ||
CST/II | 9mm (14L ~ 23/64") | ✓ | ✓ | 51 | ||
CST/70 | 10mm (16L ~ 25/64") | ✓ | ✓ | 51 | ||
Medium | CST/3 | 10.8mm (16L ~ 27/64") | ✓ | ✕ | 28 | |
CST/II | 11.3mm (18L ~ 7/16") | ✕ | ✓ | 40 | Toddlers, Children wears & Diapering | |
CST/5 | 12.5mm (18L ~ 23/32") | ✓ | ✕ | 32 | Adults Clothing & Craft items | |
Large | CST/8 | 15mm (24L ~ 19/32") | ✓ | ✕ | 32 |
TOP CAP | SOCKET | STUD | POST CAP | ||||||
Model | Post Height (H) | Dia.(D) | Height (H) | Dia.(D) | Height (H) | Dia.(D) | Post Height (H) | ||
Standard | Extra Long | Standard | Extra Long | ||||||
CST/70 | 5.6mm | 6.2mm | 9.6mm | 2.7mm | 9.6mm | 3.1mm | 9.1mm | 5.6mm | 6.2mm |
6.2mm | 9.6mm | 2.7mm | 9.6mm | 3.1mm | 10.2mm | 6.2mm | ✕ | ||
CST/II | 5.6mm | 6.2mm | 9.0mm | 3.0mm | 9.0mm | 3.0mm | 9.1mm | 5.6mm | 6.2mm |
6.2mm | ✕ | 9.0mm | 3.0mm | 9.0mm | 3.0mm | 10.2mm | 6.2mm | ✕ | |
CSTS/3 | 4.9mm | 6.2mm | 9.5mm | 2.8mm | 9.5mm | 3.1mm | 8.9mm | 4.9mm | 6.2mm |
CST/3 | 4.7mm | 6.3mm | 9.5mm | 2.8mm | 9.5mm | 3.1mm | 10.8mm | 4.7mm | 6.0mm |
CST/5 | ✕ | 6.3mm | 10.6mm | 3.0mm | 10.7mm | 3.7mm | 10.8mm | 6.3mm | ✕ |
CST/8 | 7.3mm | ✕ | 12.2mm | 3.5mm | 12.2mm | 3.8mm | 12.1mm | 7.1mm | ✕ |
⚠ Buttoncare ® uses millimeter for the datum of measurement unit. A value of inch is an approximation figures convert from millimeter, which might not be equivalent to the actual measurements of millimeter. | ||
▲ As increasing product variety increases the requests of customers finding different size specification that match with their needs. Above measurements might not precisely be shown as well as variation that might have already been affected. These measurements may be outdated or obsolete as a result of the rapid action modification of and new products caused. We appreciate it may take some time to get the necessary update information. Please contact us so we can provide further information and the solutions offer. |
We believe that brand need to architect frictionless customer experiences based on interoperability in order for every level of customers to see the value and for the industry to 'cross the chasm' into mass-market appeal. Besides we serving corporation customers, we built the new brand called Colorsnaps ® at 2012, which aims to focus since there is such an endless range of fasteners retailing business in worldwide. That's why we are focusing its efforts on Business to Business and also Business to Consumer integration with our marketing framework for one brand in operation together. Uses our branding to make its product outpace the competition in the industry.
Click On : COLORS & FINISHES
