Attaching machine, one of the important fastening processes of fastener is the well-made mechanical devices which has functions to perform. We offer a full range of automatic, semi-automatic and manual that are at the market.

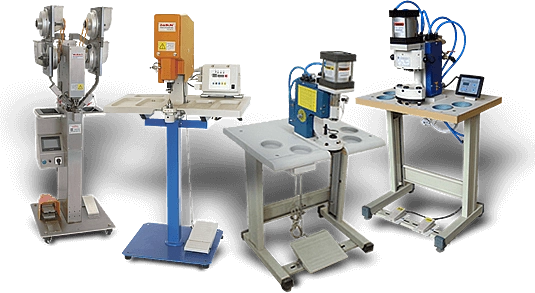

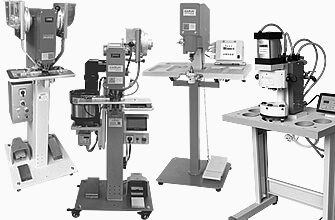

This page introduces the various lineups of Buttoncare ® industrial attaching machines and household tools. Find the perfect model for your needs
Automatic | Semi-Auto Fastening & Attaching Machines • Fastening Machines for Snap Fastener, Snap Button, Pearl Snap, Denim Jean Button, Rivet, Grommet, Eyelet, Hook and Eye.
[ OVERVIEW ]
Buttoncare ® is a brand for high-quality metal ware and attaching machine to meet the needs of small and large companies in many industries. We take pride in our mission which is to innovate, produce, sell and service quality closures products.
With the extensive knowledge and experience in this respective domain, we are offering sole attaching machine that is designed to perfection and manufactured using premium quality raw materials and modish technology. Moreover, the attaching machine offered by us is available in various specifications and can be also effectively customized as per clients’ specifications. In addition to this, offered range is highly demanded by the clients for its excellent features.
Today, we also supply equipment that can be used alongside our high quality fastener products. These attaching machines are available to purchase and have been designed to operate both functions of fastening in a single set up. We source every fastening machines with the customers in mind, making them fast, durable, and capable of fastening.
We pride ourselves on offering a range of high quality fasteners manufactured to national and international standards at competitive prices. All attaching machines are used for a variety of applications, such as an automatic / semi-automatic machines for the type of pneumatic / mechanical attaching on clothing and leather materials. In the introduction to this particular machines, read the following brief sections and features.
AUTOMATIC MODELS

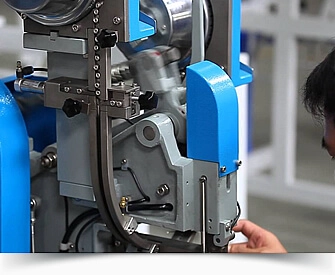

These machines can be installed various dies such as snap prong fasteners, spring press fasteners, rivets, jeans buttons & eyelets. The component is automatically feeding the die holders' position when pouring into rolling containers. It owns senor will be self-determined the thickness of attached material, user do not require an adjusting upper and lower die distances, which can be efficiently worked into attaching process and time-saving.
All of these servomotor models are equipped with positioning lasers and guards. Working height is 880mm (measured from ground to fastened position). The maximum physical speed of fastening is about 200 times per minute, except for the BD9PF and BD9SFG model series. The default voltage and frequency are 220v, 50/60Hz, and the maximum output power is 0.75Kw. Other voltages such as 110v can be equipped with transformer.

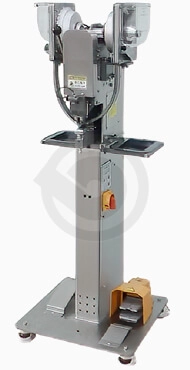

| Model : BD9SB | |
| Fastening Items | Metal or Plastic Snap Button |
| Throat Depth (Millimeter) | 40 |
| Throat Height (Millimeter) | 18 |
| Estimated Net Weight (Kgs) | 106 |
| Net Size (Millimeter) | L:600 x W:600 x H:1290 |
| Setting Requirement | 1 Pair = 2 Sets |

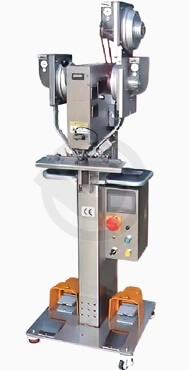

| Model : BD9SB-3R | |
| Fastening Items | Metal or Plastic Snap Button |
| Throat Depth (Millimeter) | 45 |
| Throat Height (Millimeter) | 18 |
| Estimated Net Weight (Kgs) | 116 |
| Dimension (Millimeter) | L:500 x W:500 x H:1500 |
| Setting Requirement | 1 Set |

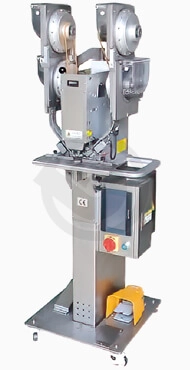

| Model : BD9SB-4R | |
| Fastening Items | Metal or Plastic Snap Button |
| Throat Depth (Millimeter) | 45 |
| Throat Height (Millimeter) | 18 |
| Estimated Net Weight (Kgs) | 123 |
| Dimension (Millimeter) | L:500 x W:500 x H:1500 |
| Setting Requirement | 1 Set |

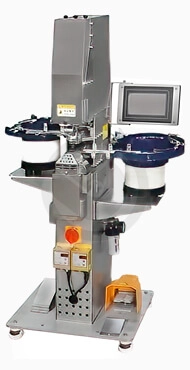

| Model : BD9SFG Model : BD9SFG-R ( Plus Grommet Pad ) Model : BD9SFG-V ( Logo Auto-Orientation ) | ||
| Fastening Items | Metal Snap Fastener or Eyelet | |
| Hole Punching Function | Yes | |
| Throat Depth (Millimeter) | 60 | |
| Throat Height (Millimeter) | 45 | |
| Fastening Maximum Physical Speed | 55 ~ 60 (Times / Minute) | |
| Estimated Net Weight (Kgs) | 146 | |
| Dimension (Millimeter) | L:700 x W:500 x H:1460 | |
| Setting Requirement | 1 Pair = 2 Sets or 1 Set (Eyelet Only) | |

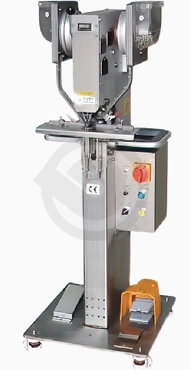

| Model : BD9X | |
| Fastening Items | Plastic / Metal Snap Button, Snap Fastener or Eyelet |
| Throat Depth (Millimeter) | 40 |
| Throat Height (Millimeter) | 18 |
| Estimated Net Weight (Kgs) | 106 |
| Dimension (Millimeter) | L:600 x W:600 x H:1290 |
| Setting Requirement | 1 Pair = 2 Sets or 1 Set (Eyelet Only) |

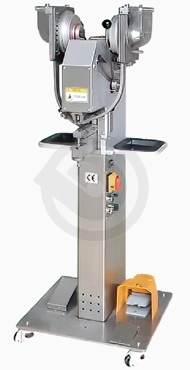

| Model : BD9XX | |
| Fastening Items | Plastic / Metal Snap Button, Snap Fastener, Eyelet, Jean Button or Rivet |
| Throat Depth (Millimeter) | 105 |
| Throat Height (Millimeter) | 20 |
| Estimated Net Weight (Kgs) | 100 |
| Dimension (Millimeter) | L:500 x W:500 x H:1330 |
| Setting Requirement | 1 Pair = 2 Sets or 1 Set (Eyelet Only) |

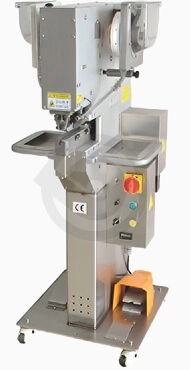

| Model : BD9XXD | |
| Fastening Items | Plastic or Metal Snap Button, Snap Fastener, Eyelet, Jean Button or Rivet |
| Throat Depth (Millimeter) | 150 |
| Throat Height (Millimeter) | 20 |
| Estimated Net Weight (Kgs) | 125 |
| Dimension (Millimeter) | L:500 x W:600 x H:1385 |
| Setting Requirement | 1 Pair = 2 Sets or 1 Set (Eyelet Only) |

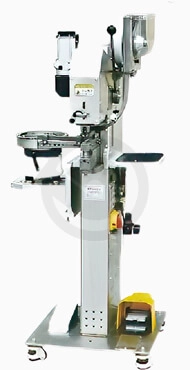

| Model : BD9XV1 | |
| Fastening Items | Plastic or Metal Snap Button, Snap Fastener, Eyelet, Jean Button or Rivet |
| Throat Depth (Millimeter) | 105 |
| Throat Height (Millimeter) | 20 |
| Estimated Net Weight (Kgs) | 110 |
| Dimension (Millimeter) | L:550 x W:600 x H:1330 |
| Setting Requirement | 1 Pair = 2 Sets or 1 Set (Eyelet Only) |

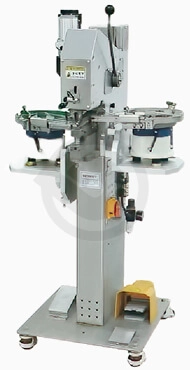

| Model : BD9XV2 | |
| Fastening Items | Plastic or Metal Snap Button, Snap Fastener, Eyelet, Jean Button or Rivet |
| Throat Depth (Millimeter) | 105 |
| Throat Height (Millimeter) | 20 |
| Estimated Net Weight (Kgs) | 116 |
| Dimension (Millimeter) | L:650 x W:600 x H:1210 |
| Setting Requirement | 1 Pair = 2 Sets or 1 Set (Eyelet Only) |

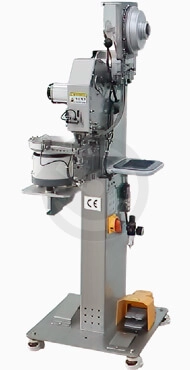

| Model : BD9JR | |
| Fastening Items | Jean Button or Rivet |
| Throat Depth (Millimeter) | 105 |
| Throat Height (Millimeter) | 20 |
| Estimated Net Weight (Kgs) | 112 |
| Dimension (Millimeter) | L:500 x W:500 x H:1420 |
| Setting Requirement | 1 Set |

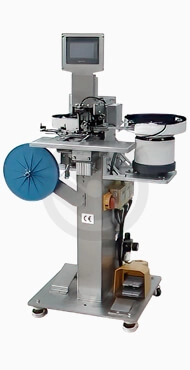

| Model : BD9PF | |
| Fastening Items | Pant Hook & Eye |
| Throat Depth (Millimeter) | 95 |
| Throat Height (Millimeter) | 40 |
| Fastening Maximum Physical Speed | 45 (Times / Minute) |
| Estimated Net Weight (Kgs) | 100 |
| Dimension (Millimeter) | L:700 x W:500 x H:1290 |
| Setting Requirement | 1 Set |
SEMI-AUTOMATIC MODELS
These machines can be installed various dies such as snap prong fasteners, spring press fasteners, rivets, jeans buttons & eyelets. The component is manually place into the die holders' position before attaching the parts. It owns senor will be self-determined the thickness of attached material, user do not require an adjusting upper and lower die distances, which can be efficiently worked into attaching process and time-saving. The following models are equipped with positioning lasers and guards. The default voltage and frequency are 220v, 50/60Hz. Other voltages such as 110v can be equipped with transformer.

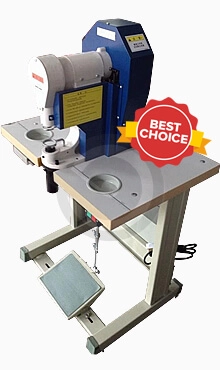

| Model : BQZN2 | |
| Fastening Items | Plastic or Metal Snap Button, Snap Fastener, Eyelet, Jean Button or Rivet |
| Throat Depth (Millimeter) | 100 |
| Throat Height (Millimeter) | 80 |
| Maximum Output Power | 0.37Kw |
| Estimated Net Weight (Kgs) | 78 |
| Dimension (Millimeter) | L:700 x W:550 x H:1300 |

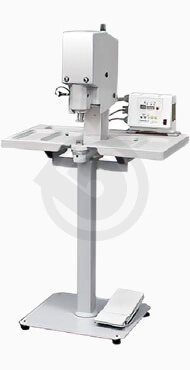

| Model : BD8XW | |
| Fastening Items | Plastic or Metal Snap Button, Snap Fastener, Eyelet, Jean Button or Rivet |
| Throat Depth (Millimeter) | 135 |
| Throat Height (Millimeter) | 45 |
| Maximum Output Power | 0.45Kw |
| Estimated Net Weight (Kgs) | 45 |
| Dimension (Millimeter) | L:680 x W:400 x H:1250 |

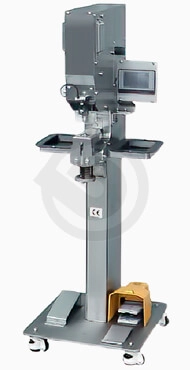

| Model : -BD8XG | |
| Fastening Items | Plastic or Metal Snap Button, Snap Fastener, Eyelet, Jean Button or Rivet |
| Throat Depth (Millimeter) | 135 |
| Throat Height (Millimeter) | 45 |
| Maximum Output Power | 0.45Kw |
| Estimated Net Weight (Kgs) | 45 |
| Dimension (Millimeter) | L:450 x W:450 x H:1310 |
Want To Get More Details?
If you are unsure of which machine model is appropriate for, our team is always available to provide you with additional details so you can make the best possible choice. Contact us, we will reach out to you shortly.
The All-New Hand Tool For Attaching Snaps!
Besides enterprise customers, we are also catering to the diverse craft supplies demands of consumers; provides irresistible products in this market. From its traditional products to the new innovation patent installation tool, we create the concepts by thinking quality products always.
This patent invention tool "Snap Plus" has a complete collection of components for those who are get start to attach the Colorsnaps snap button series. Unique, Ergonomics and Innovative Design which is a multiple functional of tool kit. What's more, with its own Lightweight, Portable, Interchangeable Dies & Hole Panels. It's give you the flexibility when attaching snaps on hammer is so easy !
