Discover strengths of snap fasteners for Colorsnaps®

Snap fasteners (also defined as press stud, popper or snap) are the common in tailoring because it is more effective in replacing fasteners. These pairs of interlocking discs find particular favour with makers of clothing, leather and for similar purposes, given their ease of use.

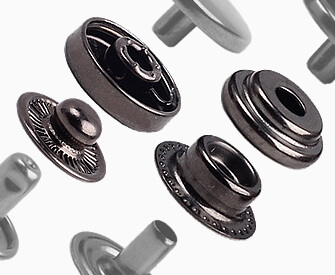

There are two different types of snaps currently in the market, post-style and prong-style. The post-style snap has a shaft that requires a hole to penetrate the fabric or leather. For post-style, it can be divided into S and R types for all customary clothing industry on fabrics, textile laminates, leathers and polyvinyl chloride items.

• R-Spring: It can be defined as the socket (Female Part) incorporates a single spring in the shape of a split ring. This fits around the inside diameter of the socket to engage the stud (Male Part).

• S-Spring: It can be defined as the socket (Female Part) incorporates a parallel spring mechanism which engages the stud (Male Part). The spring is very similar in shape to the letter S so called It is a S-Spring.


Comparison of the S & R types feature

SPRING SPRING
  • Robust appearance and function, using ring-shaped springs which are particularly suitable when a high fastening strength is required.
  • Smooth and durable closing and opening function using dual-action S-shaped springs of high-quality bronze spring wire.
  • Ideal for use with thick and firm fabrics.
  • Lies flat even on thin fabrics because of the domed socket shape of the press fastener components.
  • Wide range of standard and individual cap shapes.
  • Broad spectrum of application for many garment materials.

Buttoncare snap fastener which can be divided into four materials : Brass, Stainless and Synthetic Polymer. The top component can be also embedded Alloy (Die-casting) for decoration. For brass material, we provide three structures of various diameters and post lengths, with its complete set which can be broadly conformed to the major countries' safety regulation of holding & pushing strength, total nickel, lead, tin, chrome, cobalt & zinc contents of the MSDS suggested standard and CPSC (CPSIA), REACH (SVHC) compliance.

Snap fastener can be also classified into three types of style according to the functions. They are many different diameters of capped ranges as table below. It can be used not just in the clothing industry, but particularly in luggage, footwear, saddlery or even paper. Fulfilling the requirements of most applications as found in apparel and crafted items.

View the embedded image gallery online at:
https://www.buttoncare.com/metal-snaps.html#sigProId781f2d0b75

ModelSizeTop Diameter
Ⓡ SPRING • BASICMedium15mm (24L ~ 19/32") ; 16mm (25L ~ 5/8") ; 17mm (26L ~ 43/64")
Heavy18mm (28L ~ 23/32") ; 19mm (30L ~ 3/4") ; 20mm (32L ~ 25/32") ; 21mm (32L ~ 53/64") ; 22mm (34L ~ 7/8") ; 23mm (36L ~ 29/32")

Ⓡ SPRING • BASICSmall10mm / 10.5mm (16L ~ 13/32")
Medium11mm / 11.5mm (17L ~ 11/16") ; 12mm / 12.5mm (18L ~ 23/32") ; 13mm / 13.5mm (20L ~ 1/2") ; 14mm(22L ~ 9/16") ; 15mm (24L ~ 19/32") ; 16mm (25L ~ 5/8") ; 17mm (26L ~ 43/64") ; 18mm (28L ~ 23/32") ; 19mm (30L ~ 3/4")
Heavy20mm / 20.5mm (32L ~ 25/32") ; 21mm (32L ~ 53/64") ; 22mm (34L ~ 7/8") ; 23mm (36L ~ 29/32") ; 24mm (38L ~ 61/64") ; 25mm (40L ~ 63/64")

Ⓡ SPRING • DONUTSmall8mm (13L ~ 11/32") ; 9.5mm (15L ~ 3/8") ; 10mm / 10.5mm (16L ~ 13/32")
Medium11mm / 11.5mm (17L ~ 11/16") ; 12mm / 12.5mm (18L ~ 23/32") ; 13mm / 13.5mm (20L ~ 1/2") ; 14mm(22L ~ 9/16") ; 15mm (24L ~ 19/32") ; 16mm (25L ~ 5/8") ; 17mm (26L ~ 43/64") ; 18mm (28L ~ 23/32") ; 19mm (30L ~ 3/4")
Heavy20mm / 20.5mm (32L ~ 25/32") ; 21mm (32L ~ 53/64") ; 22mm (34L ~ 7/8") ; 23mm (36L ~ 29/32") ; 24mm (38L ~ 61/64") ; 25mm (40L ~ 63/64")
⚠ Buttoncare ® uses millimeter for the datum of measurement unit. A value of inch is an approximation figures convert from millimeter, which might not be equivalent to the actual measurements of millimeter.
▲ As increasing product variety increases the requests of customers finding different size specification that match with their needs. Above measurements might not precisely be shown as well as variation that might have already been affected. These measurements may be outdated or obsolete as a result of the rapid action modification of and new products caused. We appreciate it may take some time to get the necessary update information. Please contact us so we can provide further information and the solutions offer.



The All-NEW Snaps For Leather

We develop a new line of specialized snap fastener focused on installing leather. It is a difference to use the common snaps for attaching on leather in the market. Available with varying post length from standard to extra-long types. It can be applicable to the different leather layer thicknesses.

The snaps also coated an enhancement of anti-corrosion on its surface. These additive layers can be increased the resistance ability due to the processes of leather acid tanning.



Colorsnaps | Leather Snap Fasteners


The new era of Buttoncare post-style snaps : COLORSNAPS ®


COLORSNAPS

We believe that brand need to architect frictionless customer experiences based on interoperability in order for every level of customers to see the value and for the industry to 'cross the chasm' into mass-market appeal. Besides we serving corporation customers, we built the new brand called Colorsnaps ® at 2012, which aims to focus since there is such an endless range of fasteners retailing business in worldwide. That's why we are focusing its efforts on Business to Business and also Business to Consumer integration with our marketing framework for one brand in operation together. Uses our branding to make its product outpace the competition in the industry.



Click On : TYPE STYLES
